Description

This sensor comes with everything you need to install it into an existing Z-Wave network, including mounting screws, drywall anchors, and a CR123A battery.

• Extremely easy installation – simply install it in location prone to fire.
• Powered with one CR123A battery (included).
• Alarm is signaled by loud 85db sound and LED diode.
• Support the security, OTA.
• Manual test functionality.
• NWI automated inclusion functionality.

Note: This smoke sensor can only be used as an auxiliary detector. To fulfill Australian regulation you have to have installed a fully certified smoke sensor to act as a primary smoke detector. Our Z-Wave smoke sensor can be used only as an additional detector linked to your home automation system.

Product Details

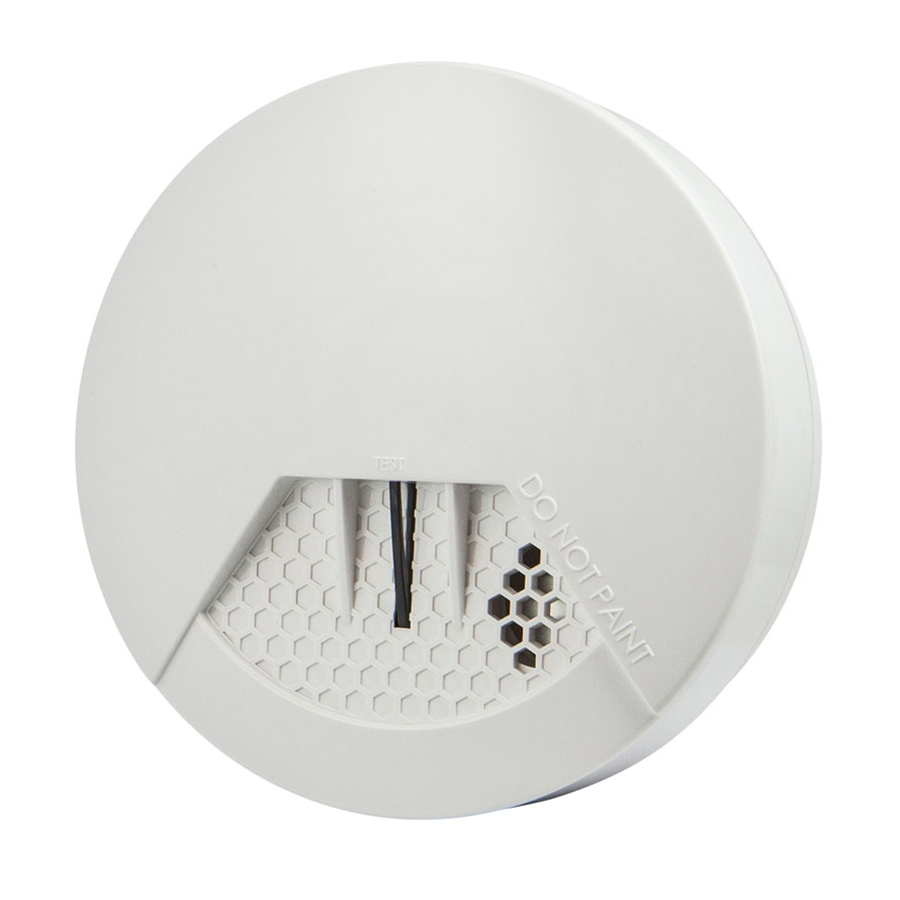

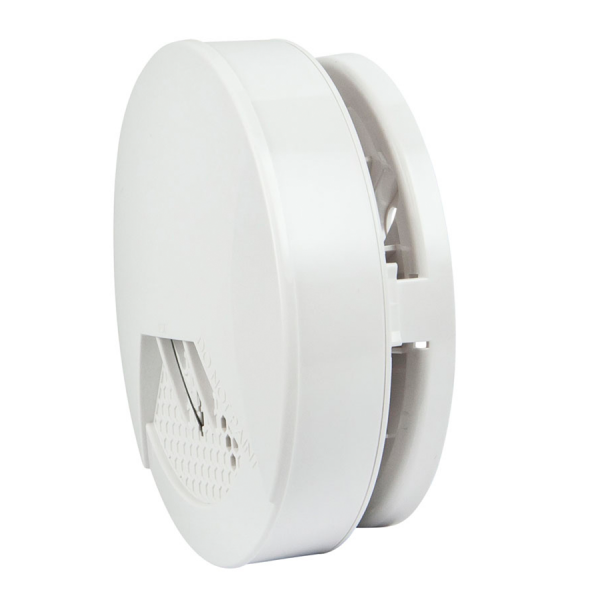

The PHILIO Z-Wave Smoke Sensor is a battery operated Z-Wave Plus ionisation smoke detector. Smoke detection is signaled through a siren and LED diode. Additionally, a notification can be sent via Z-Wave gateway to authorised user’s smartphones or tablets. The PHILIO Z-Wave Smoke Sensor is designed to be placed on a ceiling. LED indicator signals fire, operating mode and is used to see if device is within the Z-Wave network. The smoke sensor is designed to operate in confined spaces, under normal conditions (lacking smoke, dust, condensed water vapor). Beeping signal warns when the battery needs replacing.

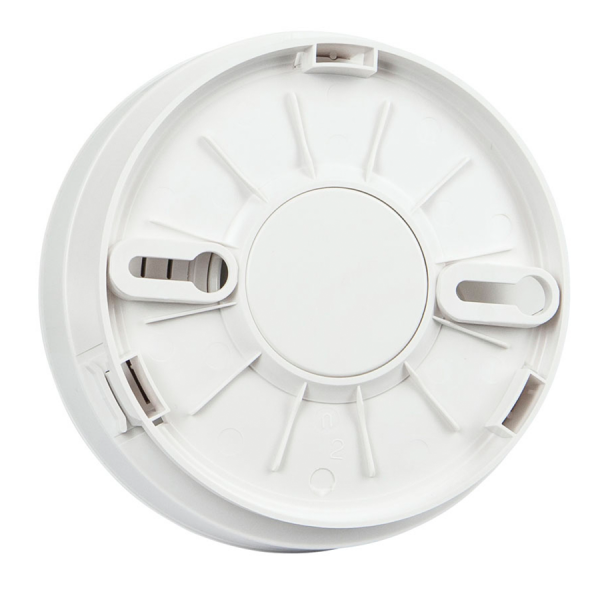

Compatible with any Vera controller, the PHILIO Z-Wave Smoke Sensor provides both a loud audio alarm and a Z-Wave network alert when smoke is detected. The battery-powered sensor easily mounts to the ceiling with its integrated yet removable bracket.

FEATURES:

• Sends system alerts through the Z-Wave network.
• Can trigger other networked Z-Wave devices.
• “Z-Wave Plus” certified for wide compatibility.
• Easy to install with integrated ceiling bracket.
• Higher output power enhances communication range (+5dBm output power as compared to -2.5dBm 300 series).
• Low power consumption.
• Automatic low battery reports.
• Over-the-air firmware upgrades.

The device has the Z-WaveTM 500 series chip onboard. It is a Z-Wave™ plus product and supports the latest security protocols as well as Over-the-Air (OTA) firmware updates.

Compatible with certified Z-Wave controllers in Australian version (921.42MHz) including:

• VeraEdge UI7
• Fibaro HC2 / Lite

Product Support

Manuals:
⇒ PHILIO Z-Wave Smoke Sensor Manual (Size: 301KB)

Technical Specifications



RF protocol	Z-Wave (binary sensor)
Battery Type	One battery CR123A
Operation Range	up to 30m indoor
Radio frequency	921.42 MHz (AU/NZ Z-Wave)
Operation temperature	-10oC ~ 40oC
Application	Indoor use only
Weight	90g
Housing	ABS
Size (Diameter)	65 x 28 mm
