Description
- 2 year battery life
- Detects movement up to 10m
- Z-Wave Plus certified
- IP43 protection class – suitable for light outdoor use
Product Details

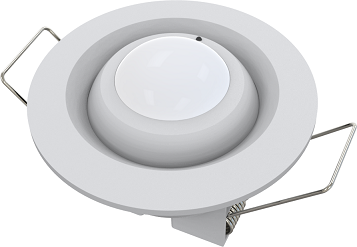

The PHILIO Z-Wave PIR Recessed is a small, battery powered motion sensor capable of detection motion up to 10m. The sensor is designed to be discretely installed within a cavity in a wall or ceiling with an easy to use spring mechanism holding it in place.
The PHILIO Z-Wave PIR Recessed is perfect for controlling the lights in any household. You can set them to switch ON when someone enters the room at night-time but not daytime.
This sensor can also be used to trigger security / warning applications within a Z-Wave network, activate lighting scenes and turn wireless switches ON/OFF.
This product integrates with all Australian certified (921.42MHz) Z-Wave controllers including:
- Vera Edge/3/Lite
- Fibaro Home Center 2/Lite
Technical Specifications
Manuals:
⇒PHILIO Z-Wave PIR Sensor User Manual (Size: 696KB)
Quick Overview
|
RF Protocol
|
Z‐Wave
|
|
RF Frequency
|
921.42Mhz ‐ AU/NZ approved RF for Z‐wave
|
|
Z‐Wave device type
|
Z-Wave sensor
|
|
Z‐Wave Certification
|
Z-Wave Plus (500 series chip)
|
|
Power
|
1 x CR123A Lithium ion battery
|
|
Communication Range
|
Up to 30m indoors with no obstacles
|
|
Detection Range
|
Up to 10m
|
|
Application
|
Indoor and outdoor
|
|
Operation temperature
|
-5 ~ 40 °C
|
|
Storage temperature
|
‐10 ~ 80 °C
|
|
Weight
|
55g
|
|
Housing
|
ABS
|
|
Dimensions
|
(LxWxH) 70mm x 70mm x 45mm |
