Description
- 4MP resolution 2560×1440, 20fps
- 2.8mm fixed focal lens
- Dual Stream, H.265/H.264
- IR up to 30m
- Digital WDR (Wide Dynamic Range)
- 3D DNR (Digital Noise Reduction)
- Powered by 12V DC or PoE
- Motion detection
- IP67 weather resistant, IK10 vandal resistant
Product Details

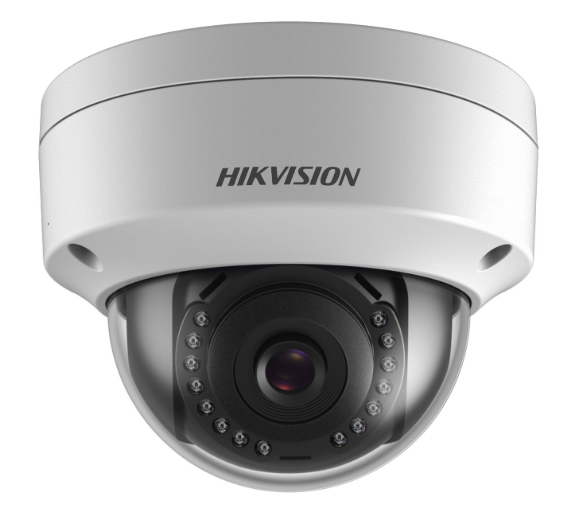

The HIKVISION 4.0MP Dome Camera offers a 2560x1440p resolution view at 20fps (25fps at lower resolutions) with dual stream capabilities (H.265/H.264). It can produce an IR view up to 30m allowing for reliable night time monitoring.
The HIKVISION 4.0MP Dome Camera will notify you in the event of video tampering, network disconnection and IP address conflict so that you can respond when its function is impaired.
Other features include:
- Anti-flicker
- Password protection
- Privacy mask
- Watermark
- IP address filter
This camera can be powered by a 12V DC source or simply using PoE eliminating the need for extra cables.
Product Support
Manuals:
⇒ HIKVISION 4.0MP Dome Camera Datasheet
⇒ Quick Start Guide of Network Dome Camera_IPC-D1XX-I _V1.1 (Size: 1589KB)
⇒ HiWatch Cam Intergration with Vera and Fibaro controllers (Size: 403KB)
⇒ HiWatch Cam LAN tool SADPTool.exe
Manuals:
Technical Specifications
|
Image Sensor
|
1/3″ progressive scan CMOS
|
|
Video Compression
|
Main Stream: H.265+/H.265/H.264+/H.264
Sub Stream: H.265/H.264/MJPEG |
|
Shutter Speed
|
1/3 s to 1/100 000 s, supports slow shutter
|
|
Lens
|
2.8mm @ F2.0, horizontal field of view 100°
|
| Communication Interface | 1 RJ45 10M/100M self-adaptive Ethernet Port |
| Power |
12 VDC ± 25% or PoE (802.3af)
|
|
Power Consumption
|
Max 5W / 7W (PoE)
|
|
IR Range
|
Up to 30m
|
|
Application
|
Indoor and outdoor use
|
|
Operation temperature
|
-10 ~ 55 °C
|
|
Storage temperature
|
‐15 ~ 60 °C
|
|
Weight
|
410g
|
|
Housing
|
Metal & ABS
|
|

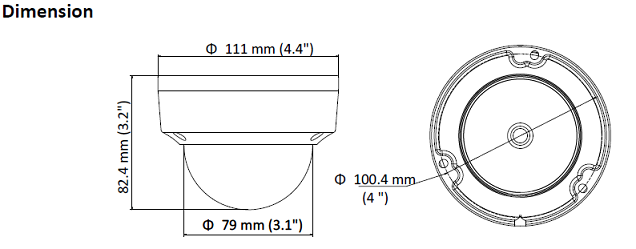

Dimensions
|
(Ø x H) 111mm x 82mm
|
